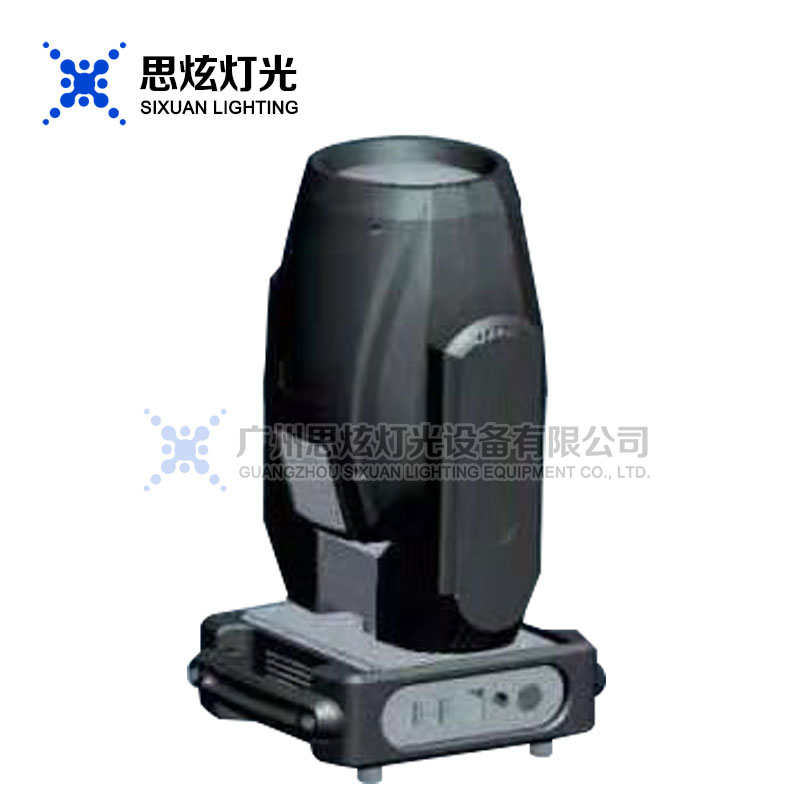

SX-Y004 260W beam light

Voltage: AC110V-240V, 50/60Hz
Fixed color: 13 color patches + white light
Color film: 1 six-color film (can do colorful effects)
Linear dimming: mechanical linear dimming 0-100
Static pattern: 13 solid maps + white light
Control channel: 20H channel
Atomization: 1 independent atomization effect, the spot is soft and natural
Prism: 56 honeycomb prism, 8 prisms (double prisms can be superimposed, can rotate independently in both directions)
Size: 32*22*58cm Net weight: 14.8KG

Machine rated power: 500W
Main board rated power and rated voltage: 200W@36V
Communication Protocol: USITT DMX-512
Channel mode: 16 (standard channel), 20 (extended channel)
Control mode: DMX, test self-propelled, voice control, programming,
Master-slave self-programming scenes that can be freely combined: 29 steps per scene
Man-machine interface: 2.8-inch TFT resistive touch color screen, support Chinese,
English and Spanish
Pan/Tilt: Pan Rotation range 540°Tilt Rotation range 258°
16-bit resolution automatic Pan/Tilt position correction
Color wheel: 13 color filters + white light, 8-bit resolution
Static pattern wheel: 13 patterns, 8-bit resolution
Prism: 16-face spin-ring prism and 24-sided spin-bee prism,
Stackable effect, 8-bit resolution
Additional effects: atomization + colorful mirror, 8-bit resolution
Zoom: 8-bit resolution
Dimming/strobe: 0~100% linear dimming, 8-bit dimming resolution,
Maximum strobe frequency 13 times / sec
Built-in system error analysis function, can display error message l bulb
Use time and luminaire usage time record
