PRODUCTS

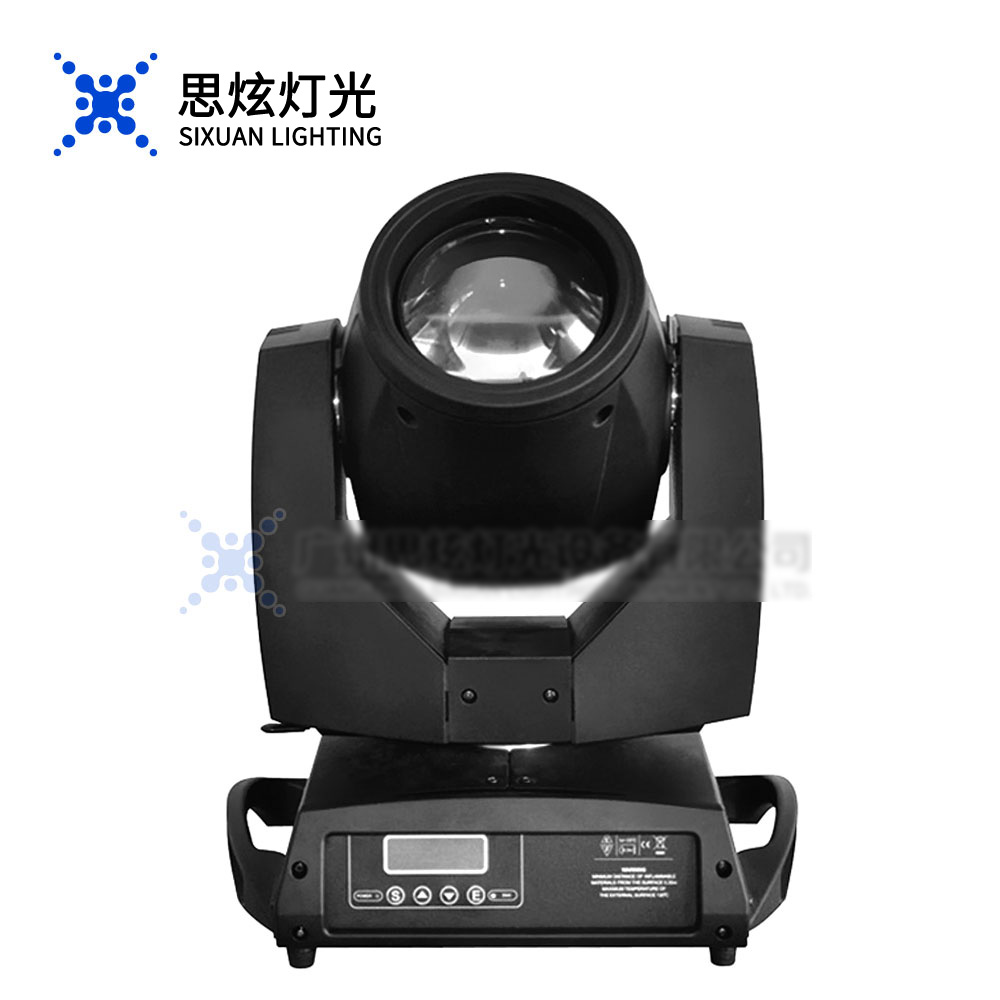

SX-Y003 200W moving head beam light

Voltage: AC100-240V, 50-60Hz
Light bulb: 200W Philips MSD Platinum 5R or YODN 5R
Color temperature: 8000k
Life expectancy: 2200 hours
Control channel: 16 DMX channels
Carton size: 430 × 430 × 520mm
Weight: 19.5kg

Communication protocol: USITT DMX-512
Horizontal scanning: 540° (16bit precision scanning), electronic error correction
Vertical scanning: 270° (16bit precision scanning), electronic error correction
Remote control bubble, control station set address code
Display: LCD display
Pattern positioning: 8 or 16bit
Prism positioning: 8 or 16 bit
Movement and control: tracking and vector
Data input / output: 3-core and 5-pin card
Color plate: one color plate, 14 color chips plus white light, with water effect
Pattern plate: 17 pattern effects
Effect wheel: a rotatable octagonal prism, effect movement, atomization function
0-100% mechanical dimming,
Support mechanical strobe and adjustable speed strobe effect,
Support for strobe macro function
Lens group optical system, motorized focus, beam angle 0-4°
Overheating protection
Inductance ballast, AC/DC switching power supply
