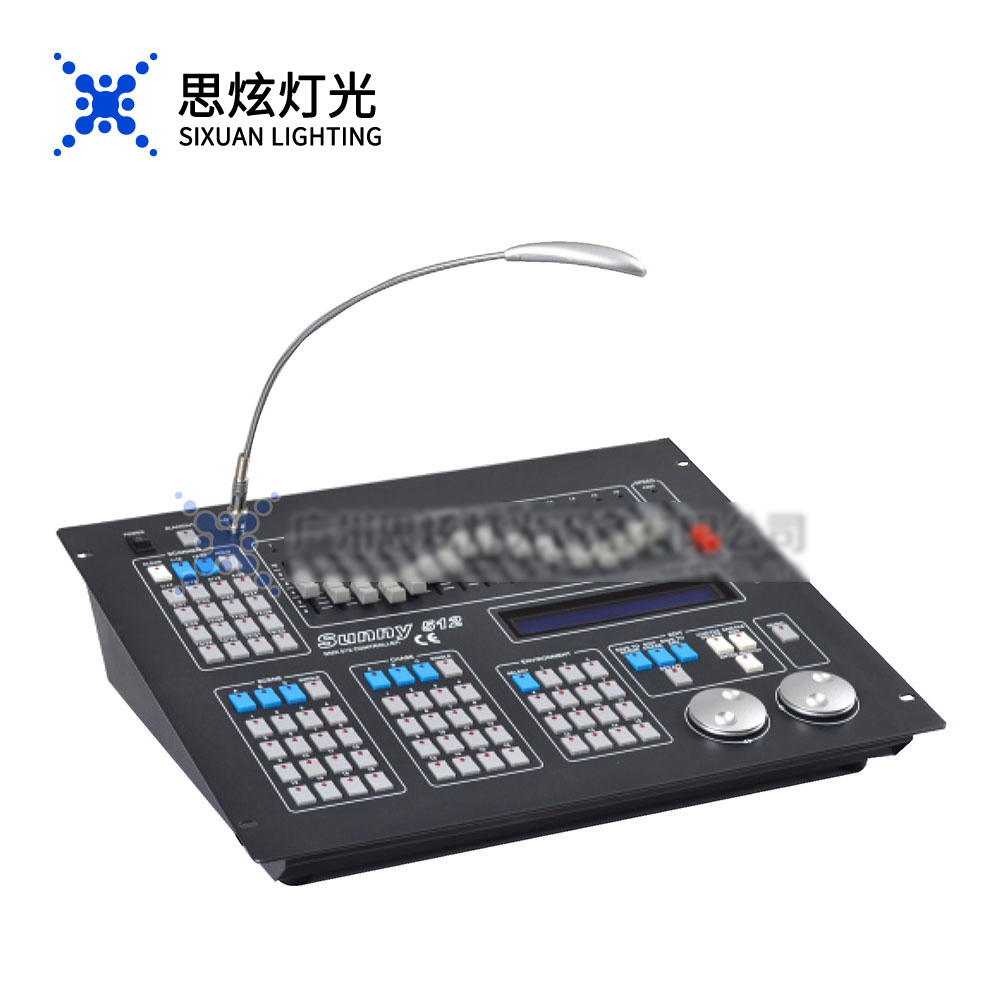

DMX512 digital output, 512DMX control channel
2 optically isolated independent drive signal output ports
Can control 32 16-channel computer lights
1600 chase steps to store capacity.
48 chase programs, up to 100 steps per program.
Each step speed and gradient parameters are set independently.
Optional music sync or manual rate control can run 4 chase programs, 48 scenes at the same time, and can carry out the lantern operation for 32 computer lights at the same time.
Shutdown data retention
DMX signal output connector: XLR-3F×2
Optional 12V gooseneck work light
Power supply: AC 100-240V 50-60Hz
Size: 483 × 400 × 105mm
